Overview glycogen granules (Granula glycogeni):
Pages with explanations are linked to the text below the images if available! (Labelling is in German)
of a liver cell 1 (rat)
of a liver cell 2 (rat)

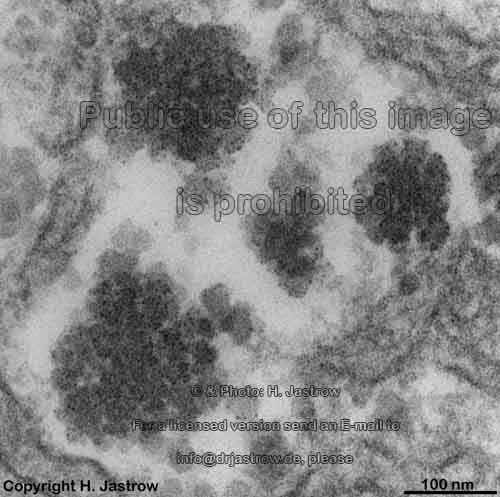

alpha-glycogen granules
of 2 liver cells (rat)
hardly stained* Glycogengra-
nules liver cell 1 (rat)
hardly stained* Glycogengra-
nules liver cell 2 (rat)
beta-Glykogen granules ske-
letal muscle cell 1 (rat)
glycogen granules
+ peroxysom (monkey)
overview therof
liver cell (monkey)
in a hepatocyte (monkey)
beta-glycogen, skele-
tal muscle cell (monkey)
detail: beta-Glykogen-
granules (monkey)
T- + L- Tubuli, beta-Gly-
kogen granules 2 (rat)
* modified contrast applied here to stain glycogen less intense. This allows easy distinction from ribosomes.

Glycogen is a very large polymer only consisting of glucose (homoglycane) mainly in alpha 1,4 glycosidic junction to which enzyme complexes as well as cofactors for aggregation and dissociation of further glucose units are attached. Helical chains of alpha 1,4 glycosidicly connected glucose units bind  further such chains via 1,6 glycosidic junctions on every 8th to 12th glucose unit. This is the molecular base of a branched three-dimensional network of glucose units with about 12 levels of branching that finally forms the glycogen particles. Further water is associated to the molecule, i.e. it is hydratised. The spheroid shape of glycogen is optimized for space-saving compact storage and quick possibility for enzymes to access the macromolecule for modification. The attached enzymes areglycogeninglucose-phosphate-mutaseUDP-glucose-phosphorylaseamylo-alpha-(1,4-->1,6)-transglycosylaseglycogen synthase a and b, which serve for steps of glycogen synthesis as well as glycogen phosphorylasetrisaccharid-transferasealpha 1,6-glycosidaseglucose-phosphate-mutase and glucose-6-phosphatase which are involved in glycogenolysis.
Glycogen storage granules (Terminologia histologica: Granula glycogeni) are seen in the cytoplasm of many cells. They always have irregular borders and are not limited by any membranes. For light microscopic visualisation of glycogen either the carmin staining according to Best (red staining of cytoplasmic areas which contain glycogen) or PAS staining is recommended which, however, also stains other sugars in red. The following different types of glycogen granules can be differentiated:
1. an alpha-glycogen granule (Terminologia histologica: Alpha granulum glycogeni) is a rosette-like aggregation of 5 to over 40 single glycogen particles with resulting diameters of 90 and up to over 200 nm, and
2. a much smaller single spherical beta-glycogen granule (Terminologia histologica: Beta granulum) resembles a single ribosome (diameter in sections about 15 - 20 nm) but is a little less electron-dense. Diameters of beta-granules are about 20 to 40, in most cases about 30 nm.
3. The rare gamma-glycogen granules (Terminologia histologica: Gamma granula glycogeni) most probably are either not fully synthesised or partly degraded glycogen granules with diameters beyond 20 nm.
Whereas alpha-granules are most commonly seen in hepatocytes where they are the morphological correlate for quick short-term storage of large amounts of glucose during anabolic phases. The beta-granules are typical for skeletal or heart muscle cells which may also show few alpha-granules.
